Weber MSA / FIA Throttle Lever Return Spring Kit

  • Actual Price:



Quick Enquiry



Description




These are FIA & MSA race legal, Weber Carburettor ball joint throttle levers in Stainless, as fitted to DB4GT - DB5 - DB6 - DBS6 & our Weber carb setup, specially modified for return spring fitting with an extra arm. (spring not supplied), another unique product designed by Chris Adams of Four Ashes & patented, © 2012

Fits many other cars using Weber carburettors.

They work really well on road cars aswell either  the MSA part with the extra arm or as a STD Weber lever without the extra arm, the STD part is direct replacement for all DB4 GT to DBS Vantage Weber carb levers.

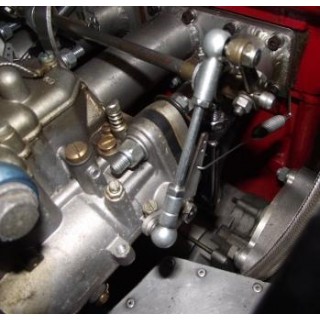

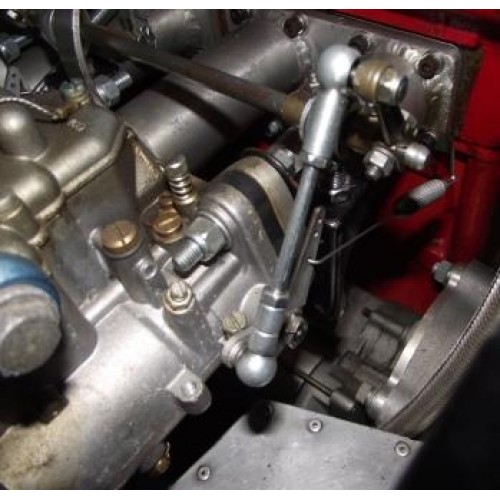

These are based on Weber Part - Fits on LHS of carb viewed from intake end or filter side, or the opposite one, Fits on RHS of carb viewed from the intake or filter side, as shown in photo.

They dont go rusty like the Weber part, whichever style you have.

our later version is a one piece spring arm & lever silver soldered to the washer (2 parts), this is bolted anyway by the spindle nut & lockwasher, its then vapour blasted to look like silver or clear plating.

RH or LH available, can be had without ball joint fitted,

This is the easy way to make your throttle linkage FIA and MSA legal.

Comes with S/S brackets for the other end of the spring that fits on manifold to engine studs.

We can modify most types of Weber lever if required, please ask.
